Modular Composite Decking System with Steel Frame – Ipe | 40" × 40"
* Automatically applied in cart, can't be combined *
For larger projects, please contact us for pricing.
| SKU: | |
|---|---|
| Box Contains: | Square ft./Box: |
Modular Composite Decking System with Steel Frame – Ipe | 40" × 40"

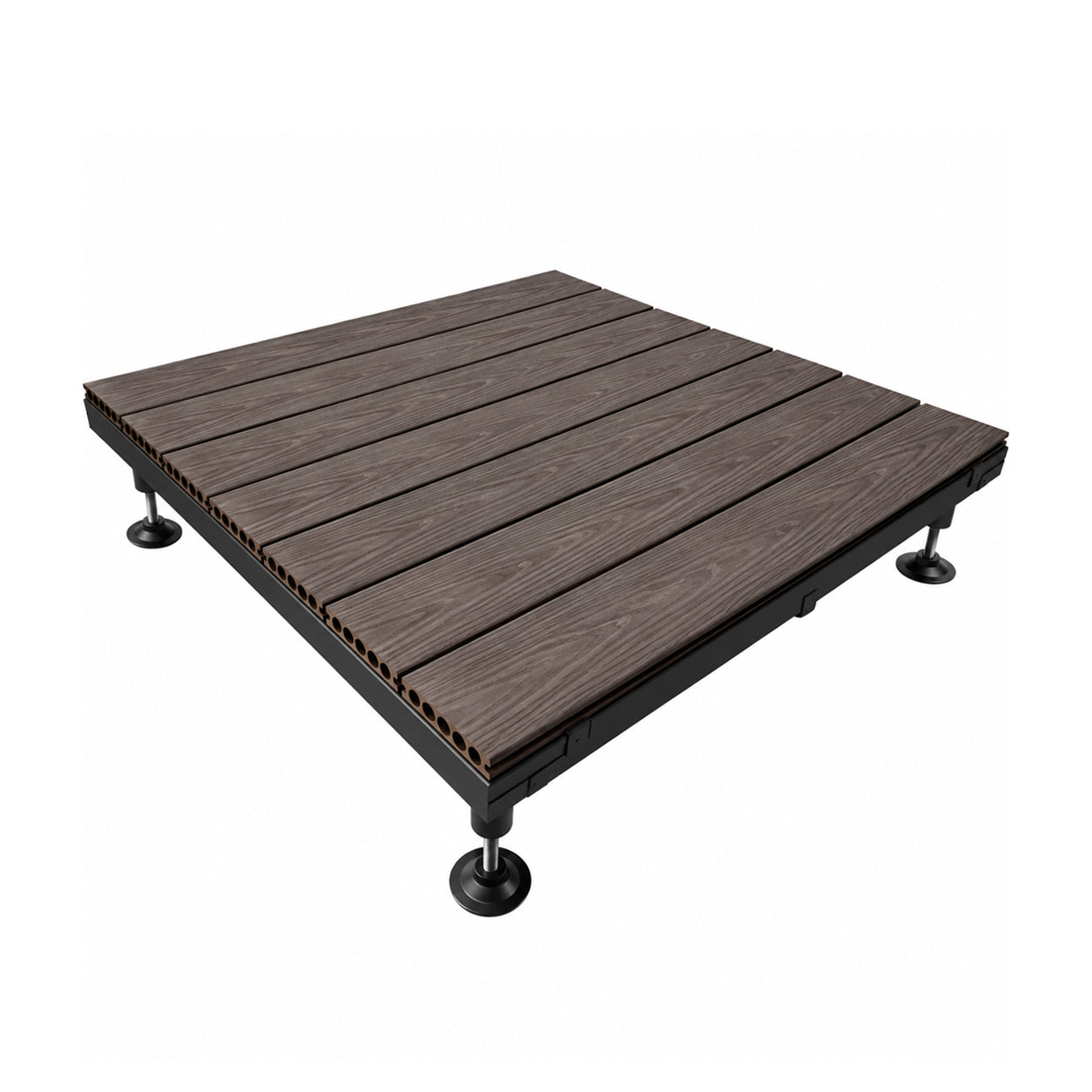

Create a finished outdoor deck with a modular system that combines composite decking, a structural steel frame, and integrated support legs into one convenient platform. Each 40" × 40" section arrives with the Ipe composite deck boards already installed, reducing the framing and individual board installation typically required when building a traditional deck.
Designed to connect with additional modules, the system makes it easy to build outdoor decking in square, rectangular, L-shaped, and custom configurations. The warm Ipe wood-look finish provides the appearance of natural hardwood while the co-extrusion composite decking offers a low-maintenance surface suited for outdoor living spaces.
Features
Complete Modular Decking System: Combines the finished composite decking surface, supporting steel frame, and legs into repeatable modules that can be connected to create larger deck layouts.
Pre-Installed Composite Deck Boards: Seven Ipe composite boards arrive installed on each platform, reducing on-site measuring, cutting, framing, and fastening.
Expandable Modular Design: Connect multiple platforms to create compact patio decks, larger entertainment areas, or custom configurations based on your available space.
Co-Extrusion Composite Decking: Hollow composite deck boards provide a durable, low-maintenance outdoor surface with a natural wood-look appearance.
Ipe Wood-Look Finish: Rich brown tones bring the appearance and warmth of Ipe hardwood to contemporary and traditional outdoor spaces.
Galvanized Steel Frame: Each platform is supported by its own black galvanized steel frame, eliminating the need to construct a separate wood subframe for each section.

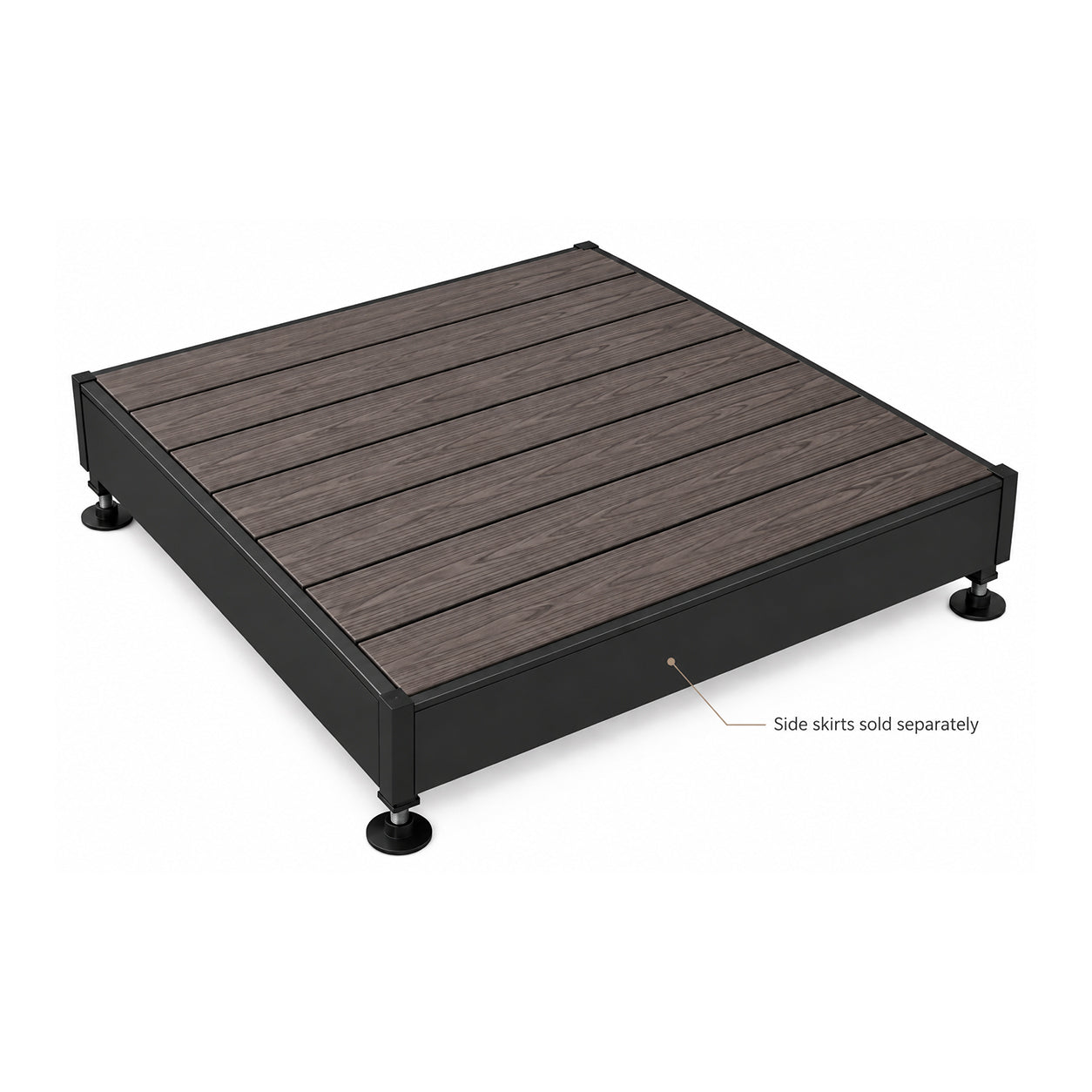

Optional Perimeter Fascia: Black side skirt fascia panels are available separately to finish exposed deck edges and create a clean perimeter appearance.
Ideal Applications

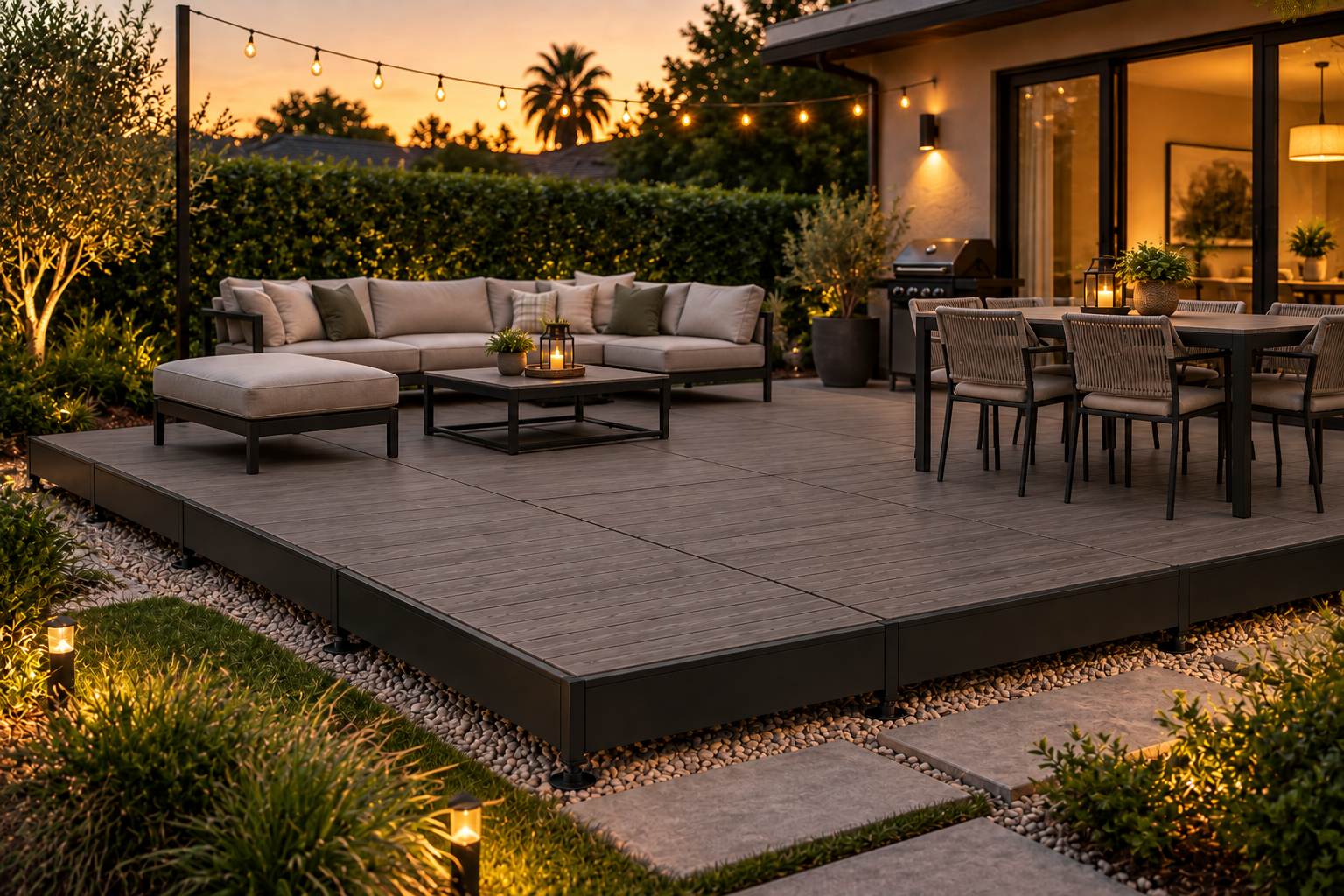

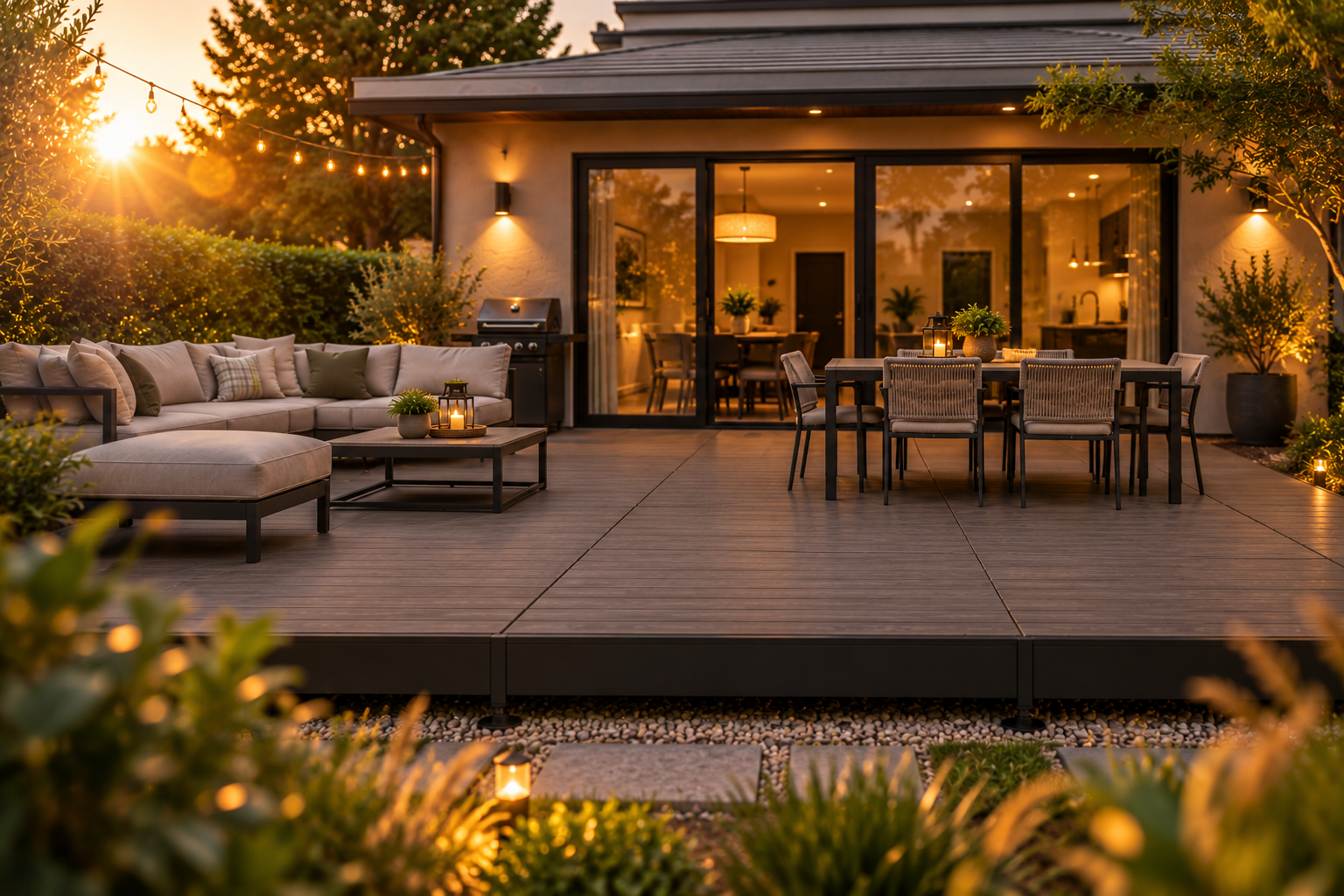

Ideal for backyard decks, patios, pergolas, gazebos, outdoor dining areas, entertainment spaces, poolside seating areas, garden spaces, and other outdoor living projects where a modular elevated decking surface is desired.
Product Specifications – Modular Composite Decking System
| Nominal Size | 40" × 40" |
| Actual Dimensions | 39.4" × 39.4" (1000 × 1000 mm) |
| Approx. Coverage | 10.8 sq. ft. per platform |
| Deck Finish | Ipe |
| Decking Material | Co-Extrusion Hollow Composite Decking |
| Deck Boards | 7 Pre-Installed Composite Boards |
| Frame | Black Galvanized Steel |
| Support Legs | 4 Black Carbon Steel Legs |
| Frame Connectors | 4 Included |
| Approx. Weight | 66 lbs. (30 kg) |
| Side Skirts / Fascia | Sold Separately |
| Configuration | Connect Multiple Modules for Larger or Custom Layouts |
Need help planning your deck? Contact us with your project dimensions and we can help calculate the number of decking modules needed for your layout.
Commonly searched as modular composite decking, composite decking system, composite deck platform, outdoor composite decking, steel frame decking system, pre-assembled decking, composite patio decking, and modular outdoor flooring.
| Description | Value |
|---|---|
| Application | |
| Box Contains | |
| Square ft. / Box | |
| Length | 39.4" |
| Width | 39.4" |
| Depth | |
| Material | WPC (Wood-Plastic Composite) |
| Finish/Color | Ipe |
