Composite Privacy Fence Gate Kit with Mechanical Keypad Lock – Black

Composite Privacy Fence Gate Kit – Black

Clear Gate Opening: 37" on the Single Swing Gate, or 74" total on the Double Swing Gate.

This composite privacy fence gate pairs WPC composite slat panels with a powder-coated architectural metal frame, finished in Black for a clean, modern exterior look that coordinates with contemporary fencing systems. The gate is available in Single Swing and Double Swing configurations, giving you a 37" clear opening or a 74" total clear opening depending on the width of your entry.

The WPC panels can be installed in either a horizontal or vertical orientation, so the gate can be set up to match the layout of an adjoining composite fence line. The kit ships unassembled with steel posts, base plates, hinges, and mounting hardware included, and the Single Swing Gate adds a mechanical keypad lock with key backup for keyless entry.

Features

WPC Composite Slat Panels: Low-maintenance panel material that gives the look of wood siding without the staining or sealing traditional wood gates require.

Powder-Coated Architectural Metal Frame: A durable frame finish built to hold up to exterior installation.

Single Swing and Double Swing Configurations: Choose a 37" clear opening for a single gate or a 74" total clear opening for a double gate, depending on your entry width.

Horizontal or Vertical Panel Orientation: WPC panels can be installed either way, making it easier to match the gate to your existing fence layout.

Mechanical Keypad Lock with Key Backup: Included on the Single Swing Gate for keyless entry with no wiring or power source required, plus a mechanical key as backup. The code is field-programmable at 4-7 digits, and the lever handle adjusts for left-hand or right-hand door swings.

Heavy-Duty Hinges and Caster Wheel: Supports smooth, reliable operation and helps the gate carry its own weight over time.

Gate Drop Rod / Cane Bolt: Provides a secondary means of securing the gate in place.

Steel Gate Posts with Base Plates: Surface-mounted posts sized at approximately 3-1/8" x 3-1/8" for a stable installation.

Weather-Resistant, Low-Maintenance Construction: Built for exterior use, with composite panels that avoid the upkeep of solid wood.

Ideal Applications

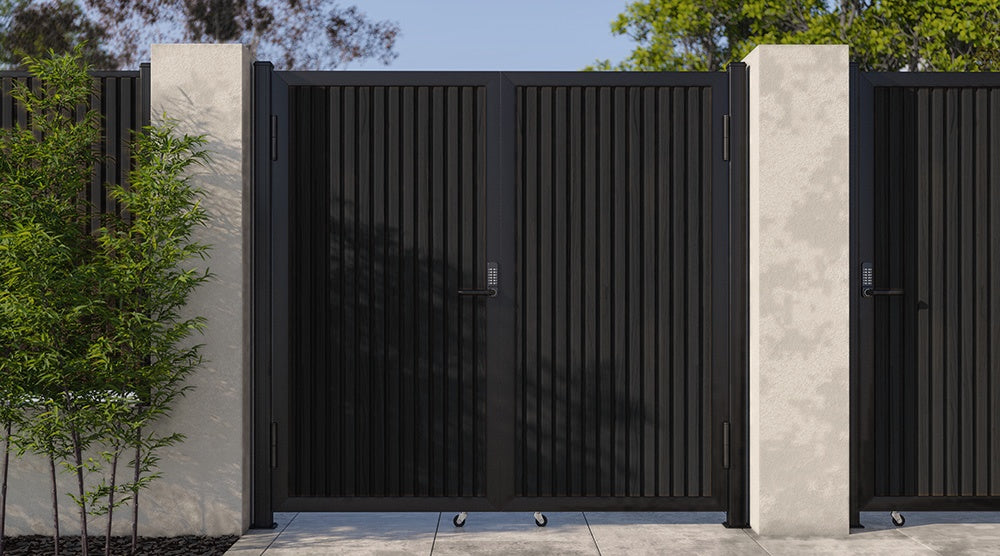

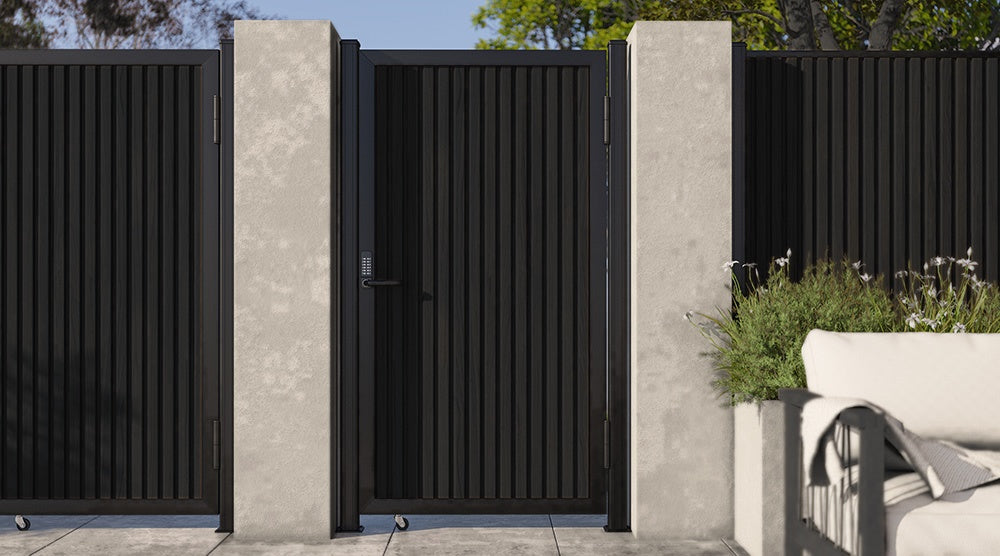

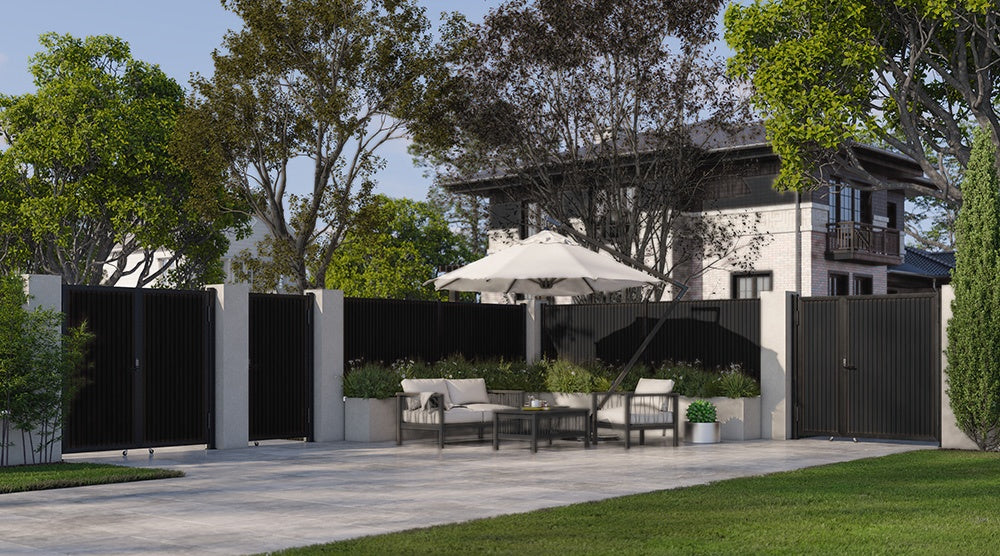

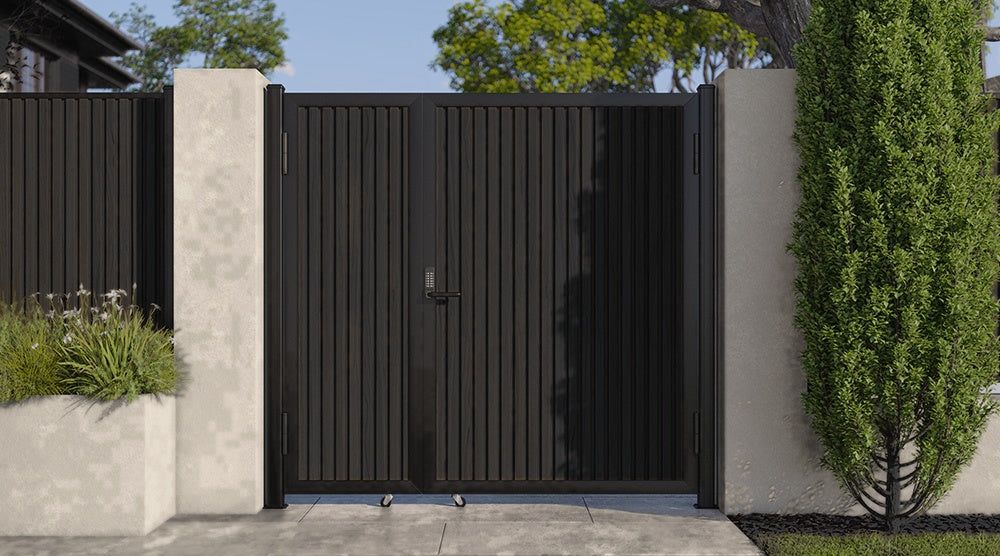

This gate kit is suited to side yard privacy gates, courtyard and garden entrances, front walkway gates, and residential privacy fence systems. It works well on contemporary home remodels and new construction projects, and coordinates naturally with matching WPC composite fencing for outdoor living spaces, landscape projects, and light commercial properties.

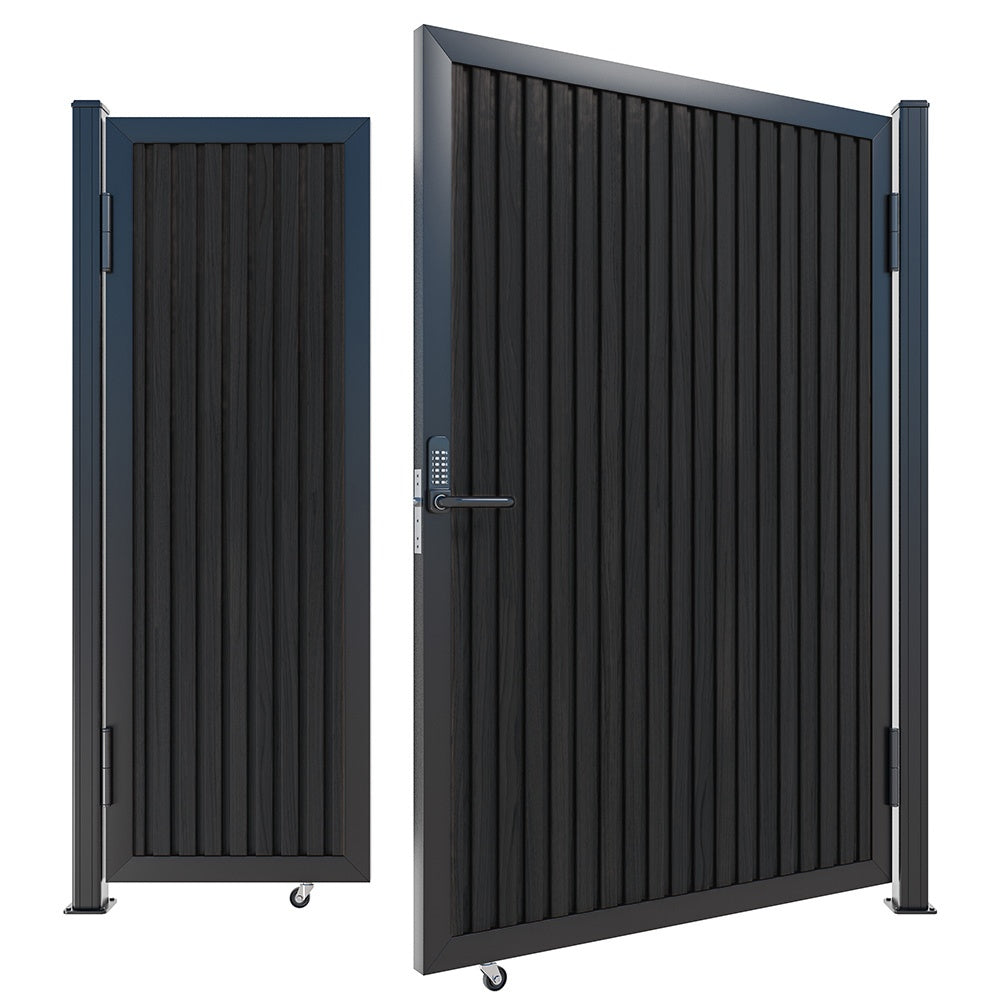

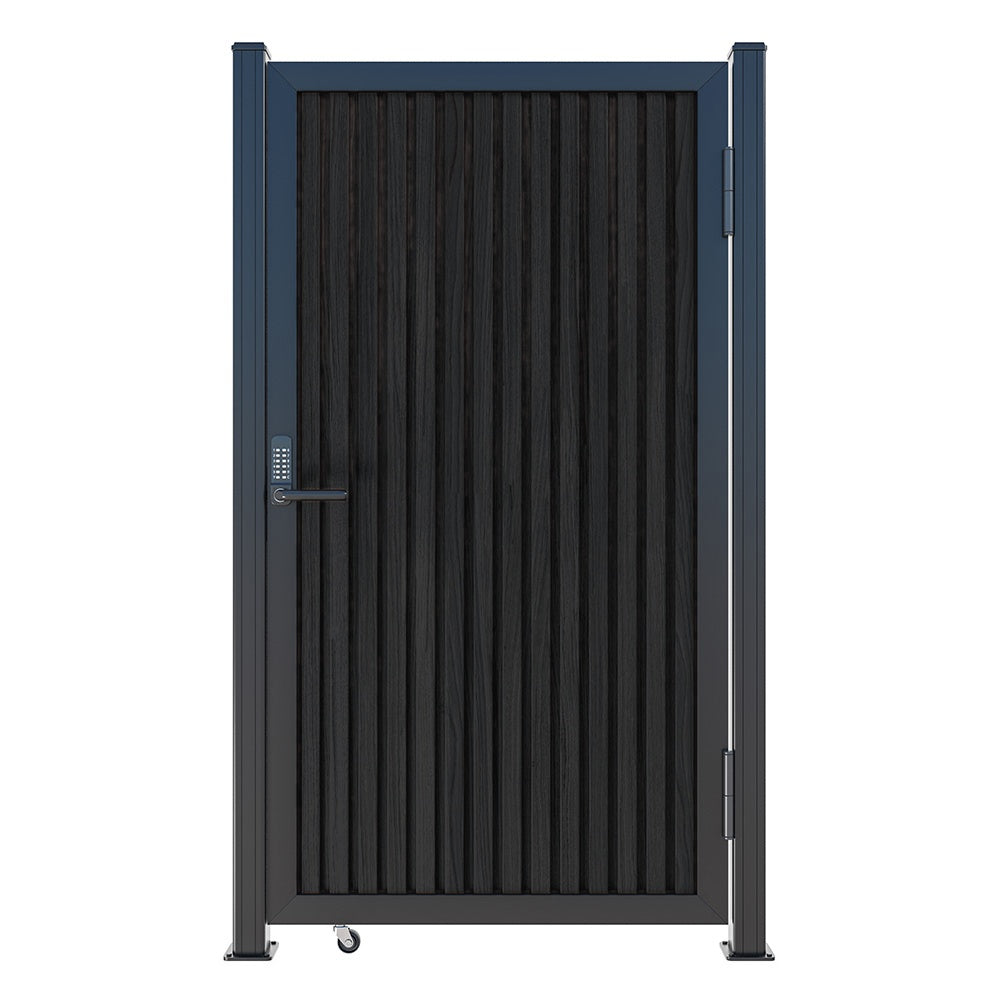

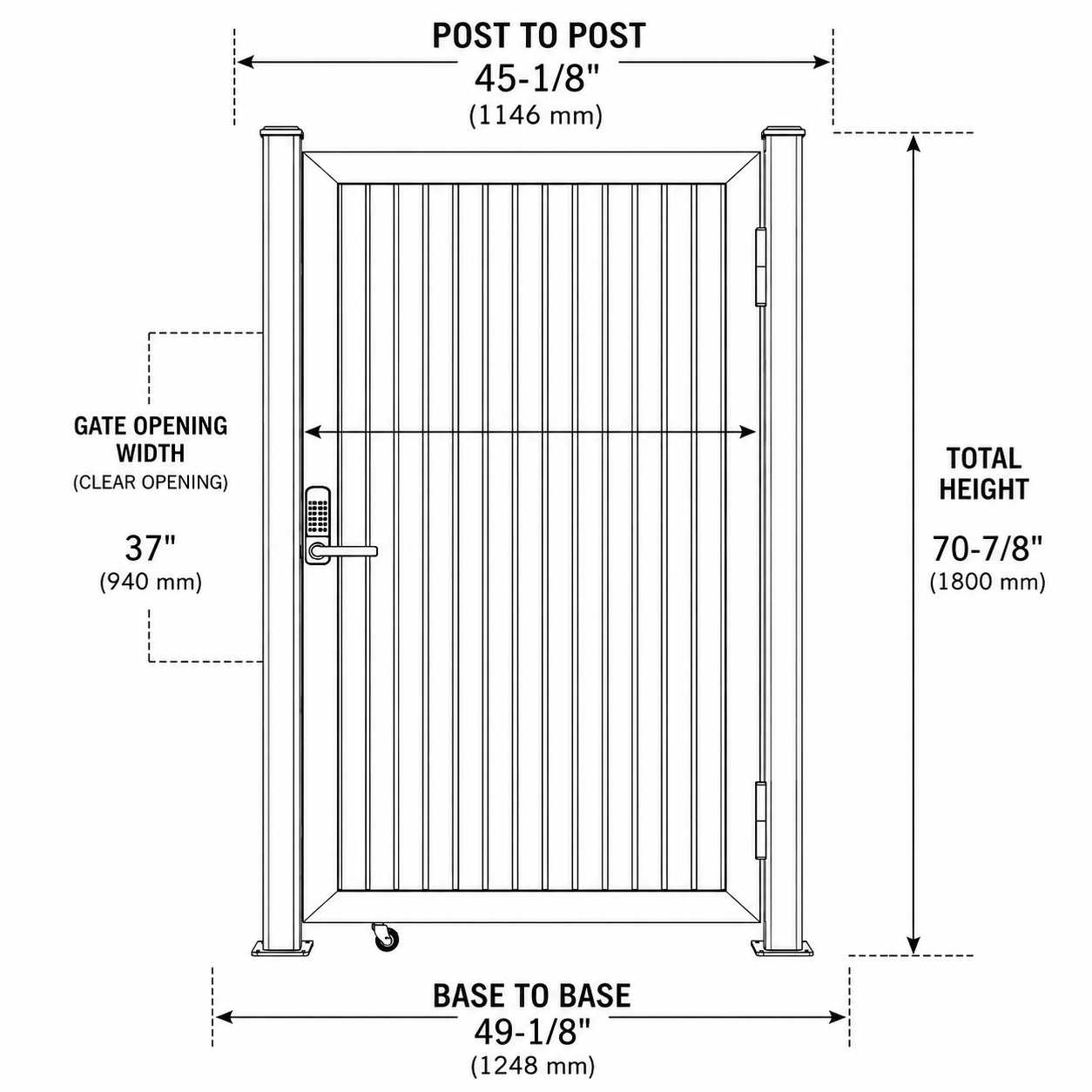

Product Specifications – Single Swing Gate

Quick Specs:
Application: Exterior privacy fence gate

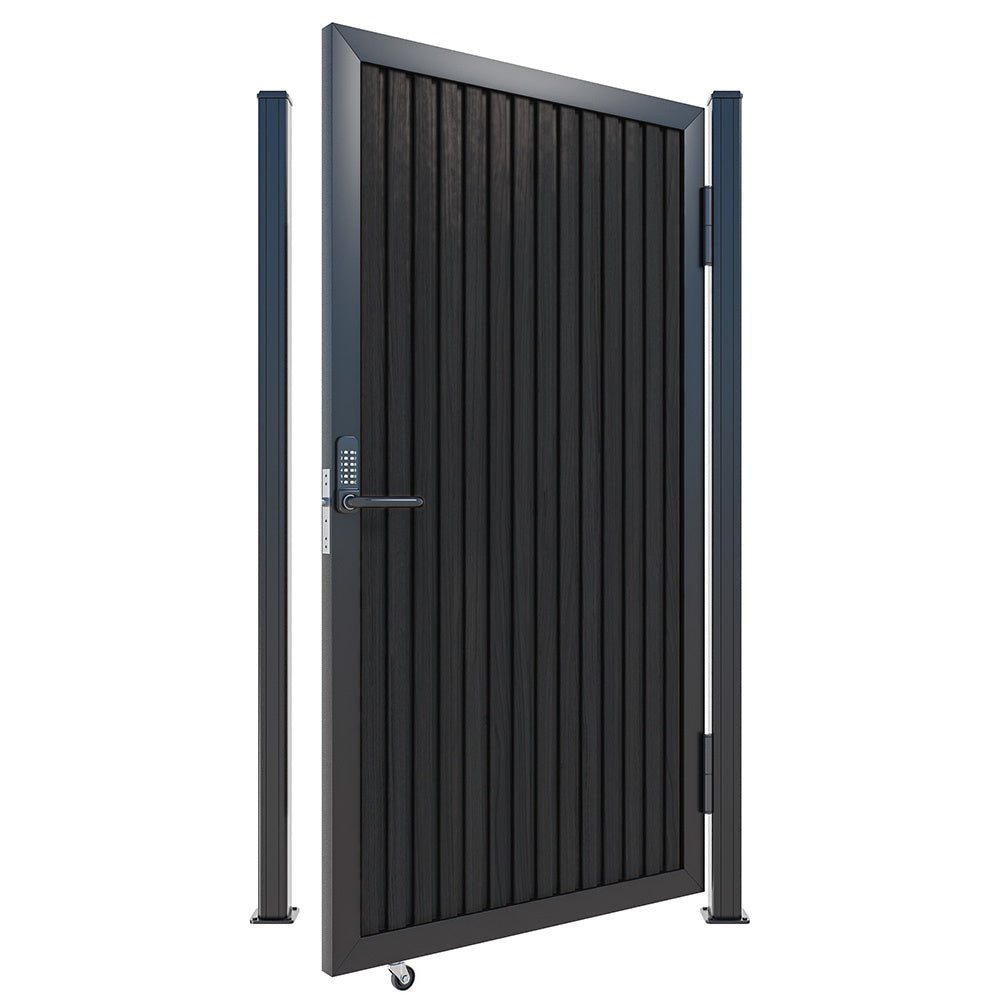

Configuration: Single Swing Gate
Clear Gate Opening: Approximately 37"
Post-to-Post Overall Width: Approximately 45-1/8"
Base Plate-to-Base Plate Width: Approximately 49-1/8"
Total Height: Approximately 70-7/8"
Gate Post Size: Approximately 3-1/8" x 3-1/8"
Gate Post Height: Approximately 70-5/8"
Base Plate Size: Approximately 5-1/8" wide x 1/4" thick
Frame Material: Powder-coated architectural metal
Post Material: Steel, with base plates
Panel Material: WPC composite slat panels
Panel Count: 6 panels, 78-1/2" x 6" each, supplied oversized for on-site cutting
Panel Orientation: Horizontal or vertical
Color / Finish: Black
Lock Type: Mechanical keypad lock with mechanical key backup, included
Lock Hardware: Field-programmable 4-7 digit code, handle adjustable for left-hand or right-hand doors
Installation Type: Ships unassembled, on-site assembly required
Contact us if you need help planning your finished opening or panel cuts before installation.

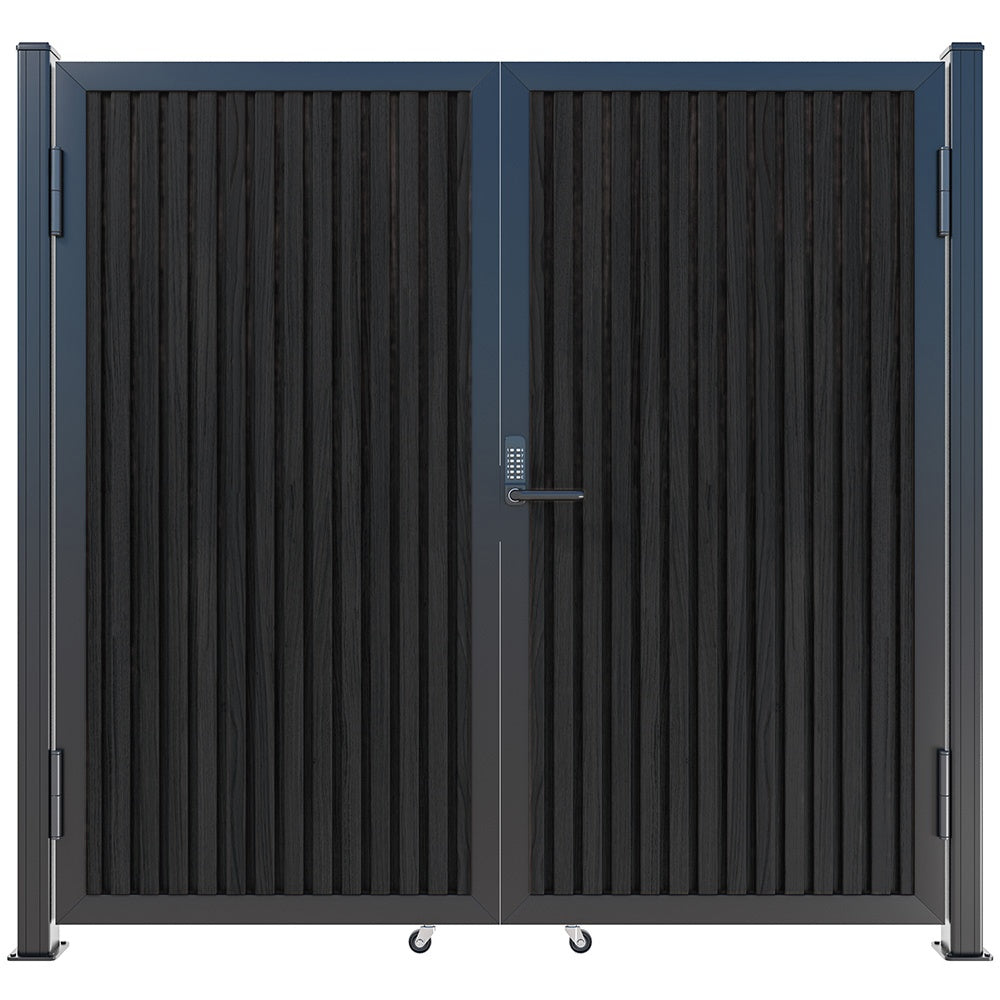

Product Specifications – Double Swing Gate

Quick Specs:
Application: Exterior privacy fence gate

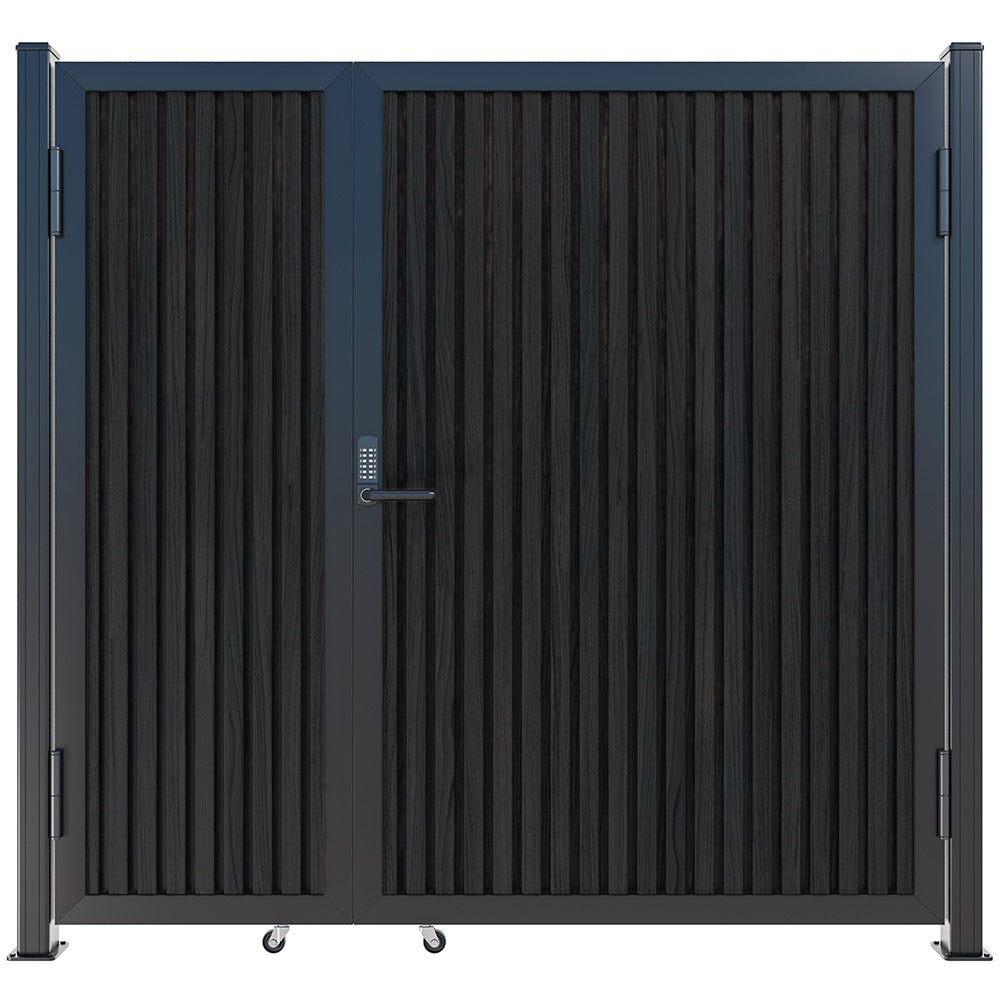

Configuration: Double Swing Gate, 2 gate leaves
Clear Gate Opening: Approximately 74" total, 37" per leaf
Post-to-Post Overall Width: Approximately 91-1/4"
Base Plate-to-Base Plate Width: Approximately 95-7/16"
Total Height: Approximately 70-7/8"
Gate Post Size: Approximately 3-1/8" x 3-1/8"
Gate Post Height: Approximately 70-5/8"
Base Plate Size: Approximately 5-1/8" wide x 1/4" thick
Frame Material: Powder-coated architectural metal
Post Material: Steel, with base plates
Panel Material: WPC composite slat panels
Panel Count: 12 panels total, 78-1/2" x 6" each, 6 per gate leaf, supplied oversized for on-site cutting
Panel Orientation: Horizontal or vertical
Color / Finish: Black
Lock Type: Not included. Gate secures with the included drop rod / cane bolt
Installation Type: Ships unassembled, on-site assembly required
Contact us if you need help planning your finished opening or panel cuts before installation.

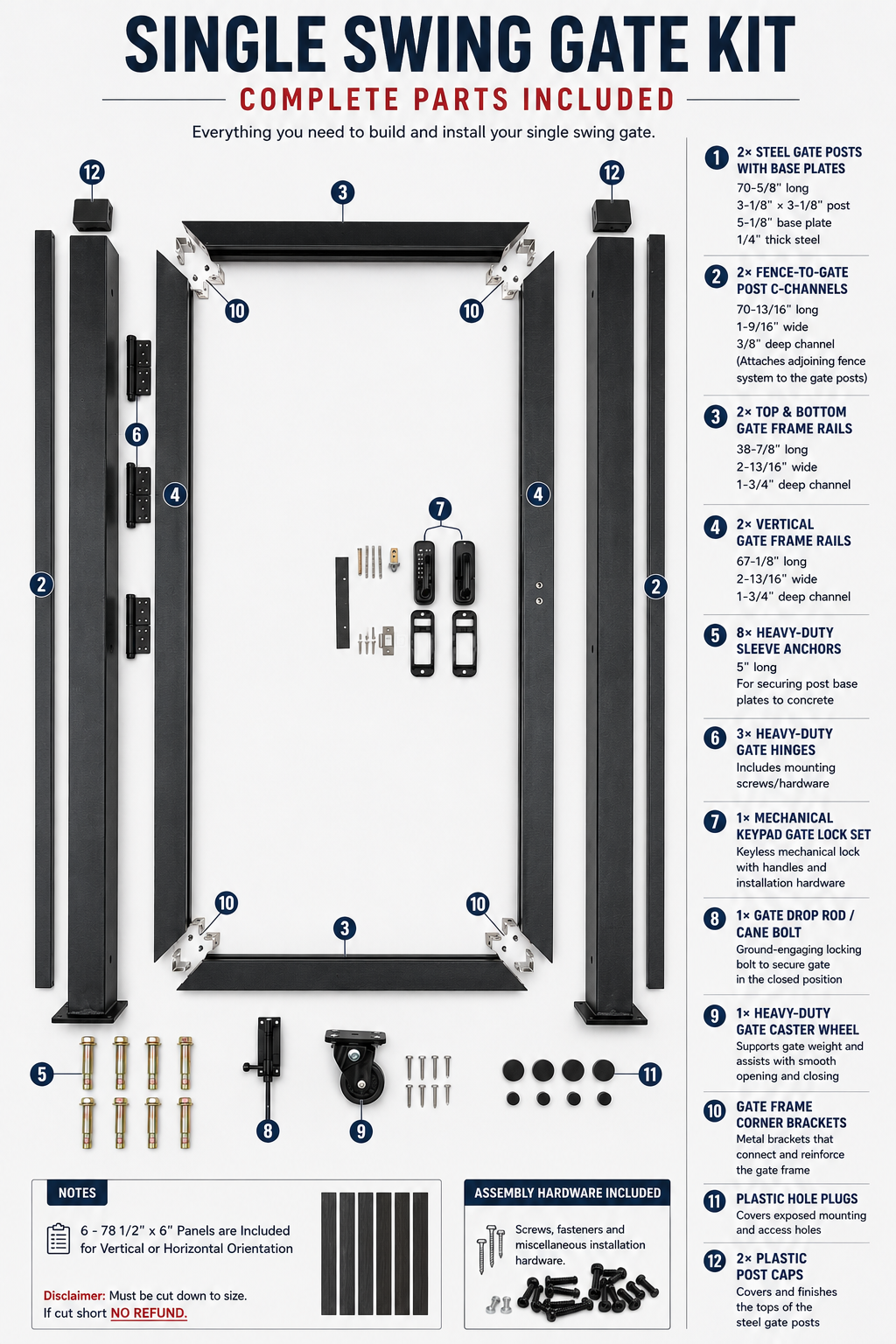

What's Included – Single Swing Gate

Quick Specs:
Steel Gate Posts: 2, with base plates, approximately 70-5/8" long
Fence-to-Gate Post C-Channels: 2, for attaching adjoining fence sections
Top & Bottom Gate Frame Rails: 2
Vertical Gate Frame Rails: 2
Heavy-Duty Sleeve Anchors: 8, for securing base plates to concrete
Heavy-Duty Gate Hinges: 3, with mounting hardware
Mechanical Keypad Lock Set: 1, with handles and installation hardware
Gate Drop Rod / Cane Bolt: 1
Heavy-Duty Gate Caster Wheel: 1
Gate Frame Corner Brackets, Plastic Hole Plugs, and Post Caps: Included
WPC Composite Panels: 6 panels, 78-1/2" x 6", for vertical or horizontal orientation
Assembly Hardware: Screws, fasteners, and miscellaneous installation hardware included
The Double Swing Gate ships with the corresponding hardware for two gate leaves, except the mechanical keypad lock.

Installation & Cutting Notice

This gate ships unassembled, and the WPC panels are supplied oversized so they can be cut to the finished dimensions your opening requires. Cutting or modifying the panels, frame, or other trimmable components is done at the installer's own risk, and components that have been cut, drilled, or otherwise altered are not eligible for return or exchange. We recommend confirming all measurements before making any cuts, and professional installation is recommended. See the parts and dimension diagrams in the product photos for a full breakdown of what's included and how to plan your installation.
